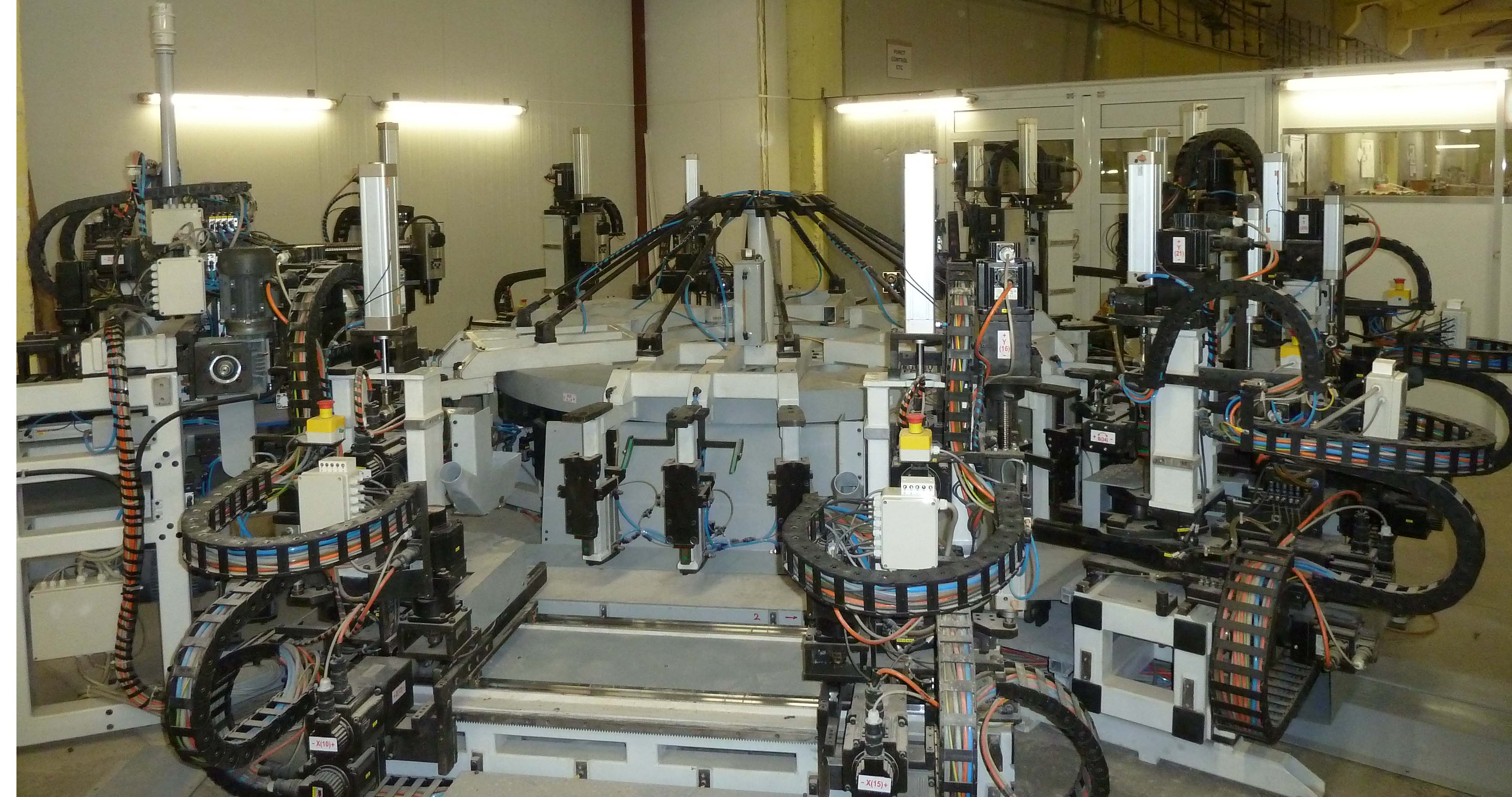

Horizontal rotation center HRC 5M CNC
The machine is designed for milling, drilling or cutting operations on three surfaces of the back legs of the chairs (up to 1200 mm). Minimum length of the part - 500 mm.
Technical configuration.
1. Feed conveyor.
2. Manipulator for details. Method of operation of the manipulator - the manipulator for details is a horizontal device that takes the details of the feeder
and puts them in the holder elements. The rotation of the manipulator is digitally
controlled.
3. Tenoning station and clarification length of details.
- The stations are two - left and right
- The stations are inclined in both planes (vertical and horizontal)
- The clarification length of details are making by the tenoning tool, by setting
tenon with a negative thickness. This avoids breaking and tool change.
- Each station is controlled by 5 (five) digital axes - three linear and two
rotating axes. Three of the linear axes are interpolated.
4. Stations horizontal drilling and milling.
- The stations are two - left and right
- The stations are inclined in both planes (vertical and horizontal)
- There is a possibility of attaching drill heads to the stations.
- Each station is managed by 5 (five) digital axes - three linear and two
rotating. Three of the linear axes are interpolated.
5. Station for vertical drilling and milling of details.
- The stations are two - left and right
- Each station is controlled by 5 (five) digital linear axes. All axes can be working or adjusting.
6. Horizontal drilling and milling station.
- The stations are two - left and right
- The stations are inclined in both planes (vertical and horizontal)
- There is a possibility of attaching drill heads to the stations.
- Each station is controlled by 4 (four) digital axes. Three linear and one rotating. Three of the linear axes are interpolated.
7. Station for vertical drilling and milling of the parts.
- The stations are two - left and right
- Each station is controlled by 3 (axes) digital linear axes. All axes can be working or adjusting.
8. Outgoing conveyor.
9. Safety and dust collection cabin.
Technical data
| Max. length of detail | 1200мм | ± 2 |
| Max. section detail | 45х70мм | ± 2 |
| Min. length of the detail | 500мм | ± 2 |
| Pressure |
6At | |
| Installed power | ~80kW | |
| Current | ~180A | |
| Productivity | 7-8 det,/min | |
| Dust level norm |
||
| Noise level |
<120 Db |

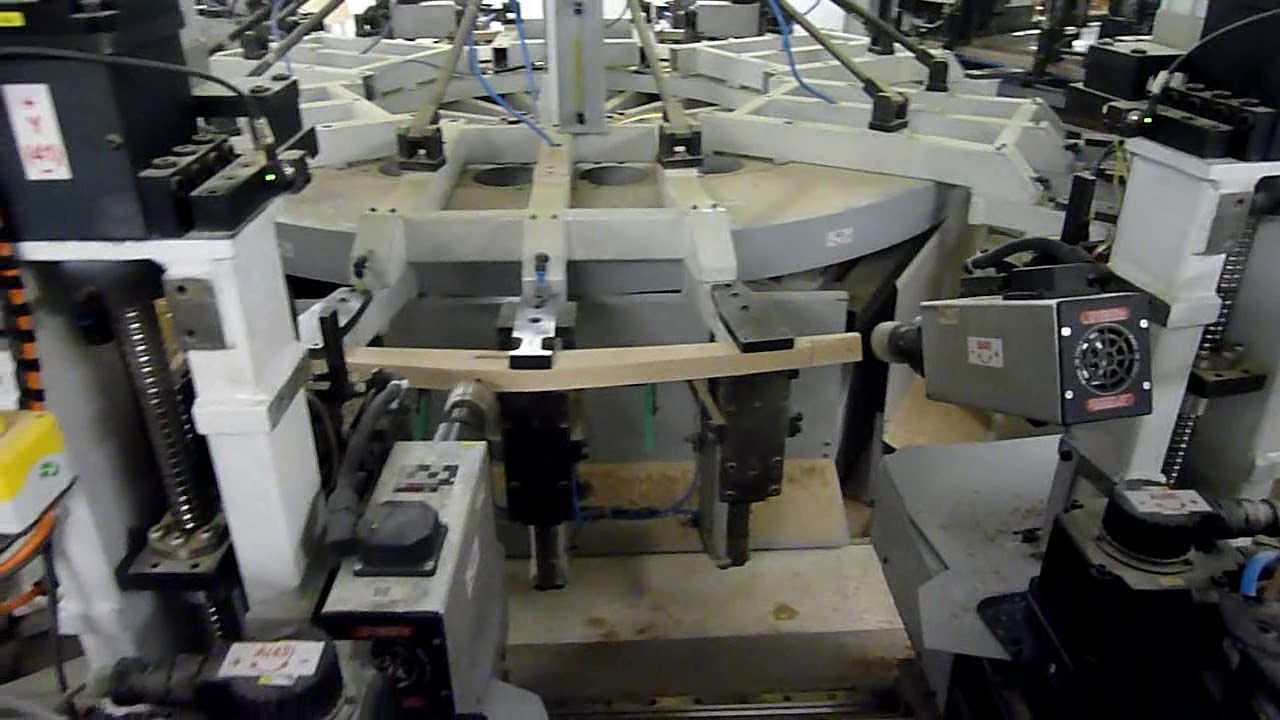

Video
