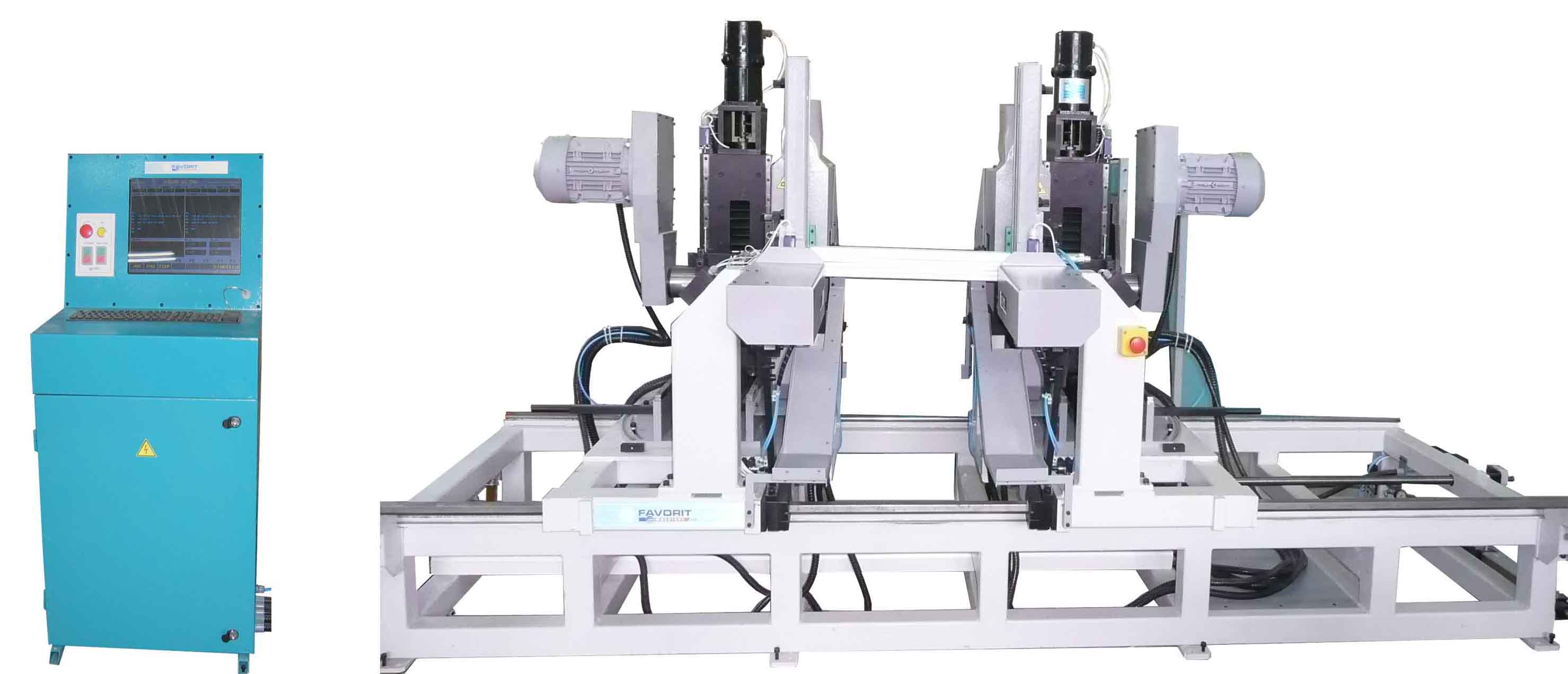

Double round - end tenoner FK200 2C CNC


Technical data


   Maximum working length 1200mm
   Minimum working length 250mm
   Details cross 50х75mm
   Tenon dimensions 30х75mm
   Working stations
2units
   Power of motors:
   – displacement - 4units
0,75kW
   - tool - 2units 4kW
   Cutting tool dimensions ø100х70х25,В=30х50мм
   Current ~ 22A
   Driving stations
pneumatic
   Details loading
automatic, from magazine
   Productivity 10units/min
   CNC controlablle working movements 6-8 det./min
   Main air pressure 6At
   Balancing cylinders pressure 3At
   Overall dimensions (H/L/B)
1850/4200/1860mm
   Weight 2000kg.

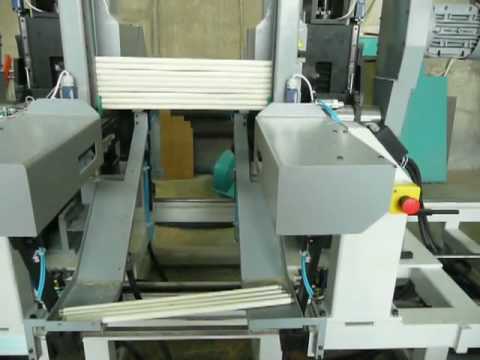

Video
